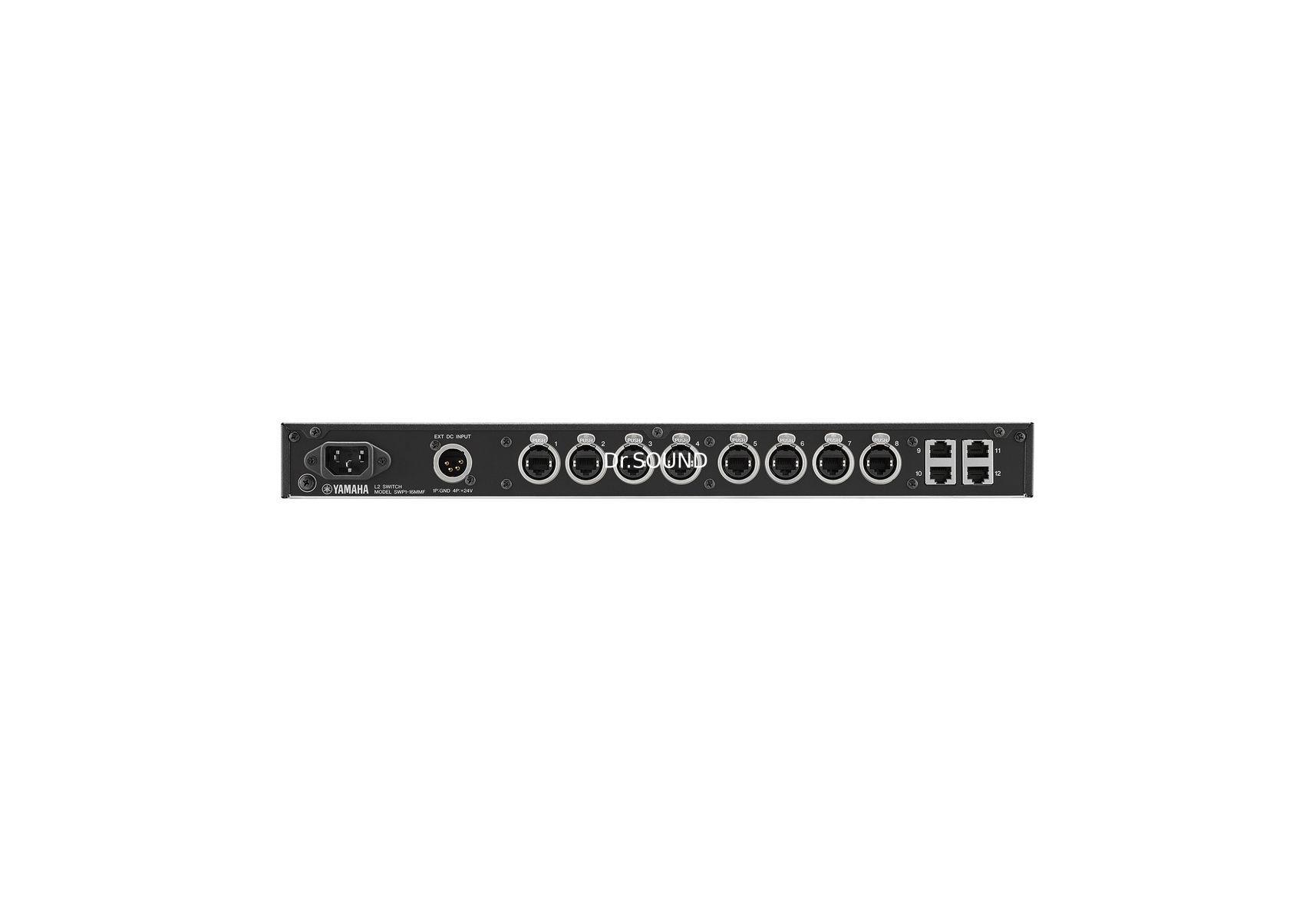

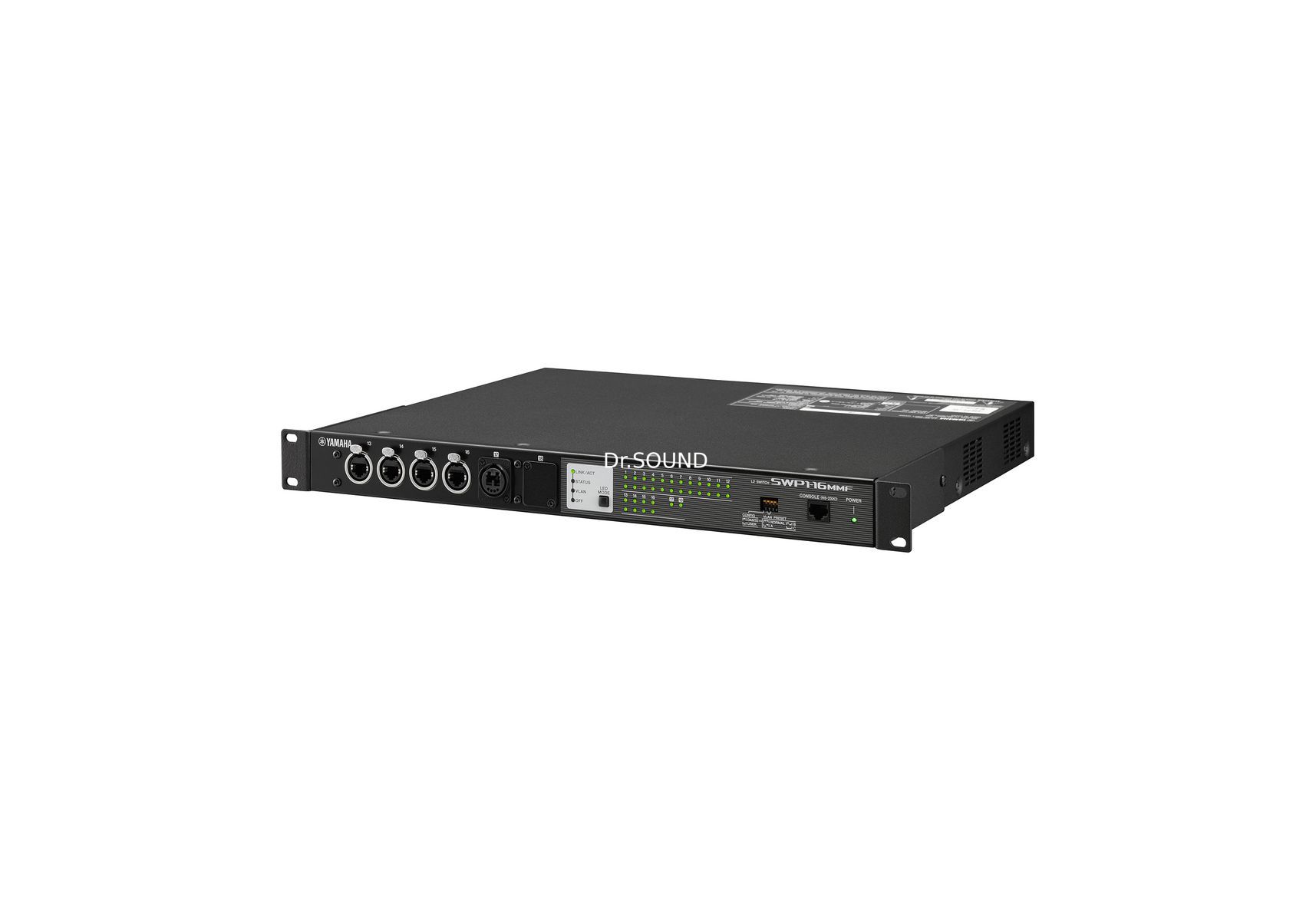

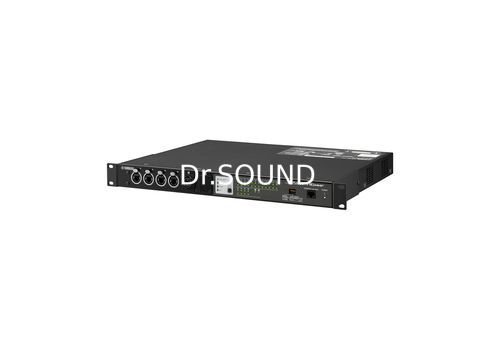

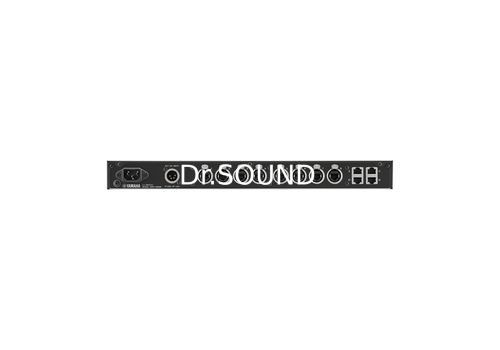

Сервисный центр по ремонту YAMAHA SWP1-16MMF Yamaha SWP1-16MMF - Сетевой коммутатор

Технические характеристики

INTERFACE SPECIFICATIONS

Terminal	Format	Level	Connector
1-8 ^1 1-8, 13-16 ^2 ^*3	IEEE802.3	10BASE-T/100BASE-TX/ 1000BASE-T	etherCON CAT5e
9-12 ^2 ^3	IEEE802.3	10BASE-T/100BASE-TX/ 1000BASE-T	RJ-45
9, 10 ^4 17, 18 ^5 ^*8	IEEE802.3	1000BASE-SX	opticalCON
CONSOLE (RS-232C)	-	RS-232C	RJ-45 ^*6
EXT DC INPUT	-	-	XLR-4-32 type ^*7

*1 SWP1-8MMF, SWP1-8
*2 SWP1-16MMF
*3 These terminals support AutoMDI/MDI-X
*4 The SWP1-8MMF supports the option for port 10, and the SWP1-8 supports the option for both ports 9 and 10
*5 The SWP1-16MMF supports the option for port 18
*6 For the pin assignments, refer to CONNECTOR PIN ASSIGNMENTS
*7 Pin 4=+24VDC, pin 1=GND, pins 2 and 3=N.C.
External power supply requirements: 24VDC±2V, 1A
*8 Conforming cable: GI-type multi-mode fiber cables with a core diameter /cladding diameter of approximately 50 μm/125 μm.
Maximum cable length: 300 m

CONNECTOR PIN ASSIGNMENTS

CONSOLE (RS-232C)

Pin No.	Signal
1	RTS
2	DTR
3	TxD
4	GND
5	GND
6	RxD
7	DSP ^*9
8	CTS ^*9

*9 These ports are not used on the SWP1.

Dante Mode & VLAN Preset Settings

Common Settings to Dante Mode

QoS (Quality of Service)
- Enabled
QoS Trust Mode
- DSCP
DSCP to Queue (*1)
- DSCP:56 -> 7, DSCP:46 -> 5, DSCP: 8 -> 2, Others -> 0
EEE (Energy Efficient Ethernet)
- Disabled

Preset Normal

Ports 1 to 8 (1 to 16)
- Access Port, VLAN 1, LAG Off, STP Off, Loop Detection On
Ports 9/10 (17/18)
- Access Port, VLAN 1, LAG On (sa1), STP On (*2), Loop Detection Off
VLAN 1 (for Dante)
- IGMP Snooping: Enabled
  - Querier: Enabled (IGMP V3), Query Interval: 30 sec, Fast-Leave: Disabled
- IPv4 Address: DHCP

Preset A

Ports 1/2, 5/6 (1 to 6, 9/10, 13/14)
- Access Port, VLAN 1, LAG Off, STP Off, Loop Detection On
Ports 3/4, 7/8 (7/8, 11/12, 15/16)
- Access Port, VLAN 2, LAG Off, STP Off, Loop Detection On
Ports 9/10 (17/18)
- Trunk Port, VLAN 1/2, LAG On (sa1), STP On (*2), Loop Detection Off
VLAN 1 (for Dante)
- IGMP Snooping: Enabled
  - Querier: Enabled (IGMP V3), Query Interval: 30 sec, Fast-Leave: Disabled
- IPv4 Address: DHCP
VLAN 2 (for Others)
- IGMP Snooping: Disabled

Preset B

Ports 1/2, 5 (1 to 6, 9/10, 13)
- Access Port, VLAN 1, LAG Off, STP Off, Loop Detection On
Ports 3/4, 6 (7/8, 11/12, 14)
- Access Port, VLAN 2, LAG Off, STP Off, Loop Detection On
Ports 7 to 8 (15 to 16)
- Trunk Port, VLAN 1/2, LAG On (sa1), STP On (*2), Loop Detection Off
Ports 9 to 10 (17 to 18)
- Trunk Port, VLAN 1/2, LAG On (sa2), STP On (*2), Loop Detection Off
VLAN 1 (for Dante)
- IGMP Snooping: Enabled
  - Querier: Enabled (IGMP V3), Query Interval: 30 sec, Fast-Leave: Disabled
- IPv4 Address: DHCP
VLAN 2 (for Others)
- IGMP Snooping: Disabled

Preset C

Ports 1/2, 5/6, 9 (1 to 6, 9/10, 13/14)
- Access Port, VLAN 1, LAG Off, STP Off, Loop Detection On
Ports 3/4, 7/8, 10 (7/8, 11/12, 15/16)
- Access Port, VLAN 2, LAG Off, STP Off, Loop Detection On
VLAN 1 (for Dante Primary)
- IGMP Snooping: Enabled
  - Querier: Enabled (IGMP V3), Query Interval: 30 sec, Fast-Leave: Disabled
- IPv4 Address: DHCP
VLAN 2 (for Dante Secondary)
- IGMP Snooping: Enabled
  - Querier: Enabled (IGMP V3), Query Interval: 30 sec, Fast-Leave: Disabled

* The port numbers in parentheses refer to those on SWP1-16MMF.
*1 The DSCP to Queue settings are optimized for Dante.
*2 In order to activate Spanning Tree protocol (MSTP)

Сервисный центр Yamaha
